| Impeller | Noryl |
|---|---|
| Pump Bowl | Noryl |
| Pump Jacket | SS 202 |
| Pump Bush | Nitrial Rubber |
| Pump Shaft | SS 410 |
| Suction Brakcet | FG 200 |
| Pump Hardware | SS 304 |
| Rotor Shaft/ Roto Sleve | EN9 / SS 410 |
| Motor Bush | LTB 5 Grade |
| Thrust Bearing | SS 304 |
| Lower & Upper Housing | FG 200 |
| Motor Shell | SS 304 |
| Winding Wire | Copper(PP) |
| Motor Hardware | SS 304 |
| Thrust Plate | Carbon |

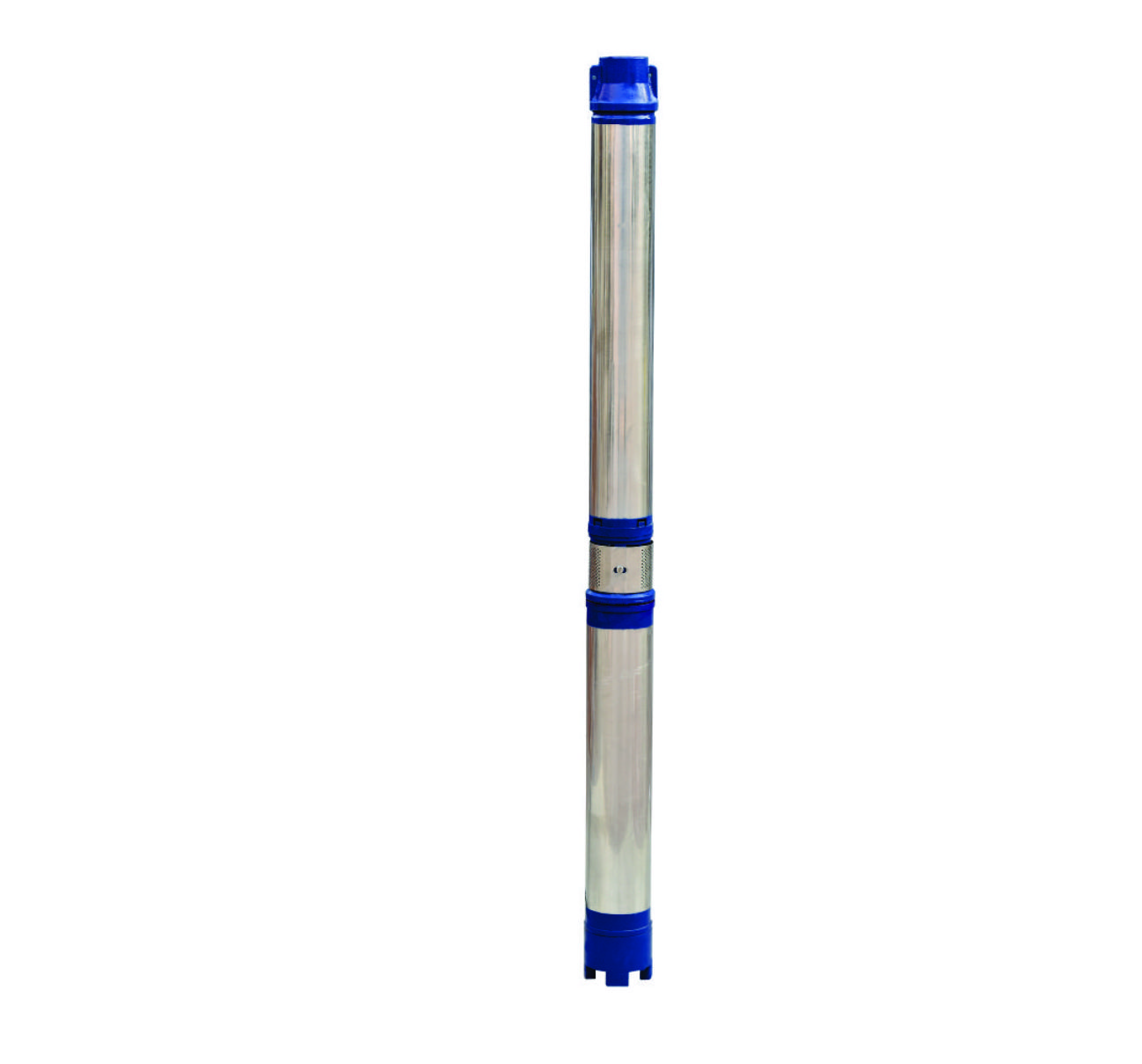

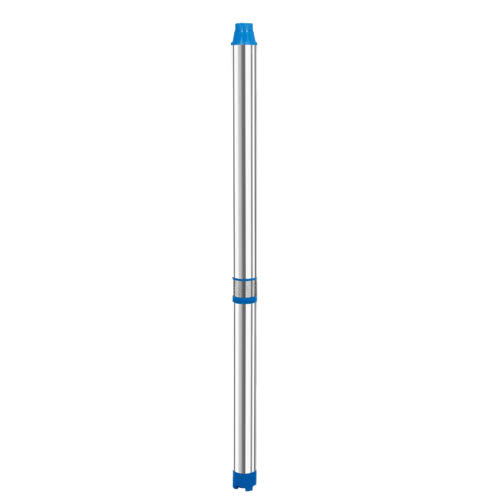

0.5 to 1 HP SOLAR PUMP
REDIAL FLOW / WATER FILLED
| HP/KW | 0.5 HP / 0.37 Kw | 1 HP / 0.75 Kw |
|---|---|---|
| STAGE | 10 | 22 |
| VOLTAGE | 140 V | 110 V |
| MECHANICAL WATT | 600 W | 850 W |
| DISCHARGE OUTLET (INCH) | 1.25 ‘’ | 1.25 ‘’ |
| HEAD (IN METERS) | 30 METER | 45 METER |
| DISCHARGE IN LPM | 25 LPM | 40 LPM |
| SHUT OFF HEAD | 50 METER | 65 METER |
| OVERALL EFFICIENCY | 30.00% | 30.00% |
| OUTER DIA. | 68 MM | 68 MM |
| MAXIMUM AMP | 3.0 A | 5.5 A |
| SIZE OF CABLE | 1 * 3 * 2.5 sq.mm | 1 * 3 * 2.5 sq.mm |
| RPM | 2800 | 2800 |
