WHY IS IT IMPORTANT TO CLEAN SOLAR PANELS?
If you had installed solar panels on your home or business, as you are already aware of the saving and efficiency of solar panels. Solar panel cleaning is a mandatory to keep the system efficient as per system design. The dirtier a solar panel becomes less efficient and which can cost your money in the long run. Clean solar panel gives you 16 % Efficiency as committed by the manufacturer. Solar Panel cleaning plays a very important role in generation of solar power system.
The more light that hits a panel, the more power it will generate. One of main issue with solar panels is the attraction of birds. Bird droppings can also compromise the efficiency of your solar Power system. As Solar Panel is in open areas or rooftop so dust will start to settle on them which block sunlight and start reducing their efficiency. There are different possibilities of efficiency drop when solar panel is not cleaned. Let’s have a look on the below table:
| NUMBER OF WEEKS / MONTH | EFFICIENCY DROP |
|---|---|
| 1 WEEK | 10% |
| 1 MONTH | 25% |
| 2 MONTHS | 50% |
WORKING DIAGRAM OF SOLAR PANEL CLEANING SYSTEM

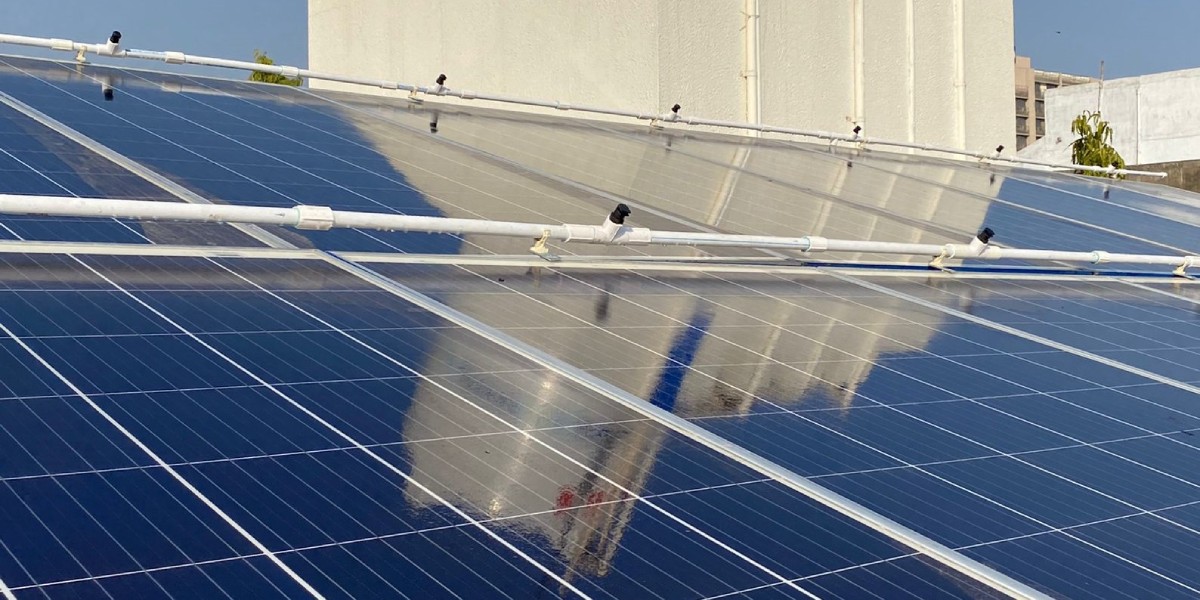

The system consists of water Solar Pump and a device. There is water spraying nozzles on the top of every panel that will spray high pressure water on the panel in order to clean it. The device has a microcontroller unit which is programmed such that, the whole water pressure, created by Solar Pump, is applied to each and every water spraying section individually. So highpressure water is sprayed to every solar panels row one by one in order to clean every panels in solar power plant. The device also consist a timer which enable system on/off automatically to this system.
FEATURES OF SOLAR PANEL CLEANING SYSTEM
- Automatic timer operated cleaning system.
- It uses 5 liter of water for cleaning single module.
- Power consumption is only 0.2 ₹ per cycle of 8 nos solar panels.
- It takes 20 seconds to clean 8 Nos Solar panels.
- Early morning operation can be done so that before sun rises panel can be cleaned.
- Water level sensors apply to prevent the Solar Pump failure without water.
- Solar panel cleaning system controller is Water resistance IP 54 Rating.
- Open well Solar Pump stator is SS 304 for Long life operation.
- No need of any infrastructural modification, as the system operates on the frame of the solar panel.
- Scratch-free technology and Smooth operations
- Reduces dust accumulation on solar panel by 90%
- Easy replacement of nozzle and Screen filter system apply for separates solid matters and other fine articles to prevent blockage of nozzles.
- Controller install with real time clock if light goes then controller will restart automatically operating time.
