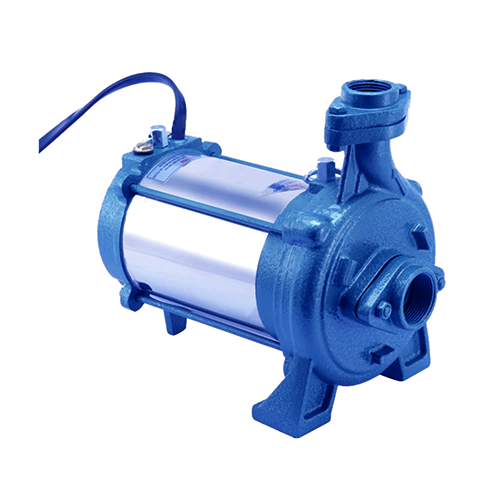

JP SOLAR offers solar open well pumps ranging from 1 HP to 30 HP. Our three phase pumps are developed using very high quality material and state-of-the-art manufacturing process. Our solar open well pumps are ideal for open well where there is a fluctuation in the water level. The solar pump rests at the bottom of the well and functions beneath the water.
JP SOLAR solar open well pumps are suitable for industrial applications, public water supply, agriculture, sprinklers and water fountains. They have excellent performance, are low in maintenance, efficient, compact and eco-friendly. We provide easy installation and operation.
Material
| Impeller | Cast Iron FG200 |
|---|---|
| Pump Casting | Cast Iron FG200 |
| Mechanical Seal | Rubber |
| Pump Shaft | SS 410 |
| Pump Hardware | SS 304 |
| Motor Shell | SS 304 / FG200 |
| Motor Shaft | SS 410 |
| Thrust Bearing | Gunmetal |
| Stator Shell | SS 304 |
| Winding Wire | Copper |
| Motor Hardware | SS 304 |
| Thurst Plate | Fiber |
3.0 to 10.0 HP SOLAR OPENWELL PUMP
Horizontal Submersible Type
| HP/KW | 3 HP / 2.2 Kw | 3 HP / 2.2 Kw | 5 HP / 3.7 Kw | 5 HP / 3.7 Kw | 7.5 HP / 5.5 Kw | 7.5 HP / 5.5 Kw | 10 HP / 7.5 Kw | 10 HP / 7.5 Kw |
|---|---|---|---|---|---|---|---|---|
| STAGE | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| VOLTAGE | 230 V | 230 V | 380 V | 380 V | 300 V | 300 V | 380 V | 380 V |
| MECHANICAL WATT | 2700 W | 2700 W | 4400 W | 4400 W | 6500 W | 6500 W | 8000 W | 8000 W |
| DISCHARGE OUTLET (INCH) | 3 ‘’ | 4 ‘’ | 3 ‘’ | 4 ‘’ | 4 ‘’ | 5 ‘’ | 4 ‘’ | 5 ‘’ |
| HEAD (IN METERS) | 8 METER | 6 METER | 15 METER | 8 METER | 15 METER | 8 METER | 22 METER | 8 METER |
| DISCHARGE IN LPM | 750 LPM | 1000 LPM | 800 LPM | 1100 LPM | 1100 LPM | 2400 LPM | 1300 LPM | 22 METER |
| SHUT OFF HEAD | 24 METER | 18 METER | 28 METER | 20 METER | 28 METER | 18 METER | 35 METER | 22 METER |
| OVERALL EFFICIENCY | 30.00% | 30.00% | 40.00% | 40.00% | 40.00% | 40.00% | 40.00% | 40.00% |
| MAXIMUM AMP | 8.0 A | 8.0 A | 8.0 A | 8.0 A | 17.0 A | 17.0 A | 17.0 A | 17.0 A |
| SIZE OF CABLE | 1 * 3 * 2.5 SQ.MM | 1 * 3 * 2.5 SQ.MM | 1 * 3 * 2.5 SQ.MM | 1 * 3 * 2.5 SQ.MM | 1 * 3 * 4.0 SQ.MM | 1 * 3 * 4.0 SQ.MM | 1 * 3 * 6.0 SQ.MM | 1 * 3 * 6.0 SQ.MM |
| RPM | 2800 | 2800 | 2800 | 2800 | 2800 | 2800 | 2800 | 2800 |
