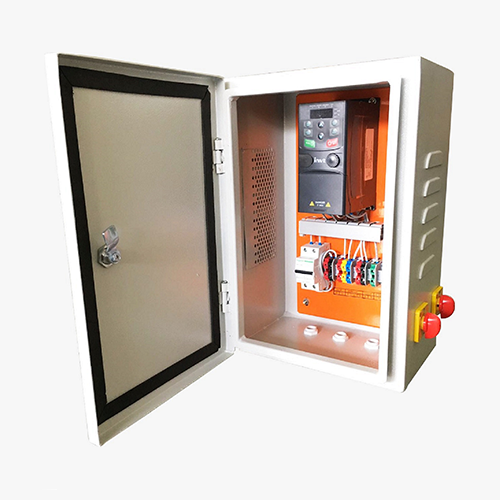

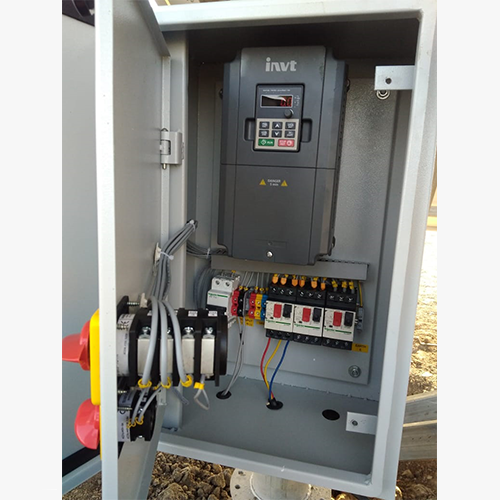

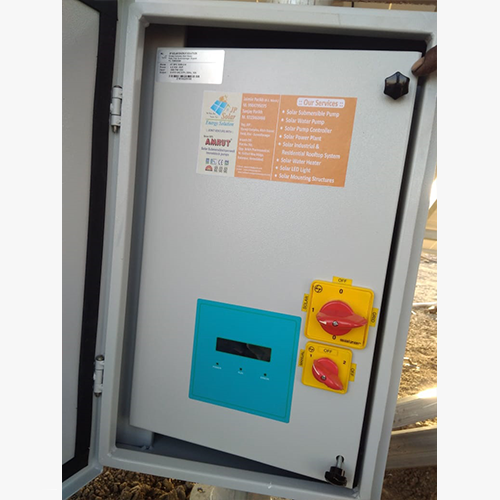

ABOUT JP SOLAR PUMP CONTROLLER
- The JP Solar Pump Controller is designed to run any electric Three Phase Submersible and Monoblock Pump/ Motor.
- The JP provides water in remote location by converting high solar Output DC from Solar Panel into AC to run a standard AC Submersible Pump/Motor
- When Solar Power is not available controller can be automatically or Manually switched to an alternating single phase or three phase input AC
SILENT FEATURES
LCD display shows Frequency (%), input DC voltage, Output AC voltage and current,
- MPPT- Maximum power point tracking for maximizing the efficiency of input power.
- Uses MPPT Technology to maximize water delivery at various solar energy levels.
- Soft starter features prevents water hammering and increase system life.
- High flow system for faster tank fill and significant water output.
- Simple installation and requires less maintenance.
- Solar pump controller: optional features (ac/dc change over, Grid sharing facility, Difference voltage range controller and RMS facility).
JP SOLAR SYSTEM INCLUDE
- SOLAR Pump and Motor (Optional)
- JP SOLAR pump controller (MPPT)
- Motor and controller Rating Available in the range of 1 HP TO 100 HP.
APPLICATION
- Tank filling
- Wild life & Farms
- Rural water supply for villages & homesteads
- Irrigation system in Agriculture.
- Fountains
| jp spc 1hp | jp spc 2hp | jp spc 3hp | jp spc 5hp | jp spc 7.5hp | jp spc 10 hp | jp spc 15 hp | jp spc 20hp | jp spc 25hp | |||
| dc input | technical data | 1 hp 110 v & 160 v pump | 2 hp 160 v & 350 v pump | 3 hp 230 v & 380 v pump | 5 hp 380 v pump | 7.5 hp 300 v pump | 10 hp 415 v pump | 15 hp 415 v pump | 20 hp 415 v pump | 25 hp 415 v pump | |
| input power | 1000 w | 2000 w | 3000 w | 5000 w | 8000 w | 10000 w | 15000 w | 20000 w | 25000 w | ||
| max input dc voltage (voc) | |||||||||||
| 440 vdc in 230 v pump / 800 vdc in 415 v pump | |||||||||||
| mppt voltage | 400-650 vdc in 415 v range | ||||||||||
| 50-360 vdc in 230 v range | |||||||||||
| mppt efficiency | 98% | ||||||||||
| ac output | applicable motor | 0.7kw/ 1 hp | 1.5kw/ 2hp | 2.2kw/ 3hp | 3.7kw/ 5hp | 5.5kw/ 7.5hp | 0.7kw/ 10hp | 11 kw/ 15 hp | 11 kw/ 15 hp | 18 kw/ 25 hp | |
| output power | |||||||||||
| rated output | 0-230 vac & 0-415 vac | ||||||||||
| voltage | |||||||||||
| output | 0 – 120 hz | ||||||||||
| frequency | |||||||||||
| output current | 5 a & 7 a | 10a | 10a | 10a | 17 a | 17 a | 25 a | 32 a | 37 a | ||
| mechanical data | dimension | 300 * 220 * 450 | 300 * 220 * 450 | 300 * 220 * 450 | 300 * 300 * 600 | 300 * 300 * 600 | 395 * 300 * 700 | 395 * 300 * 700 | 395 * 300 * 700 | 395 * 300 * 700 | |
| ( w * d * h ) | in mm | in mm | in mm | in mm | in mm | in mm | in mm | in mm | in mm | ||
